The Large Capacity Tubular Belt Conveyor System in Rizhao Port

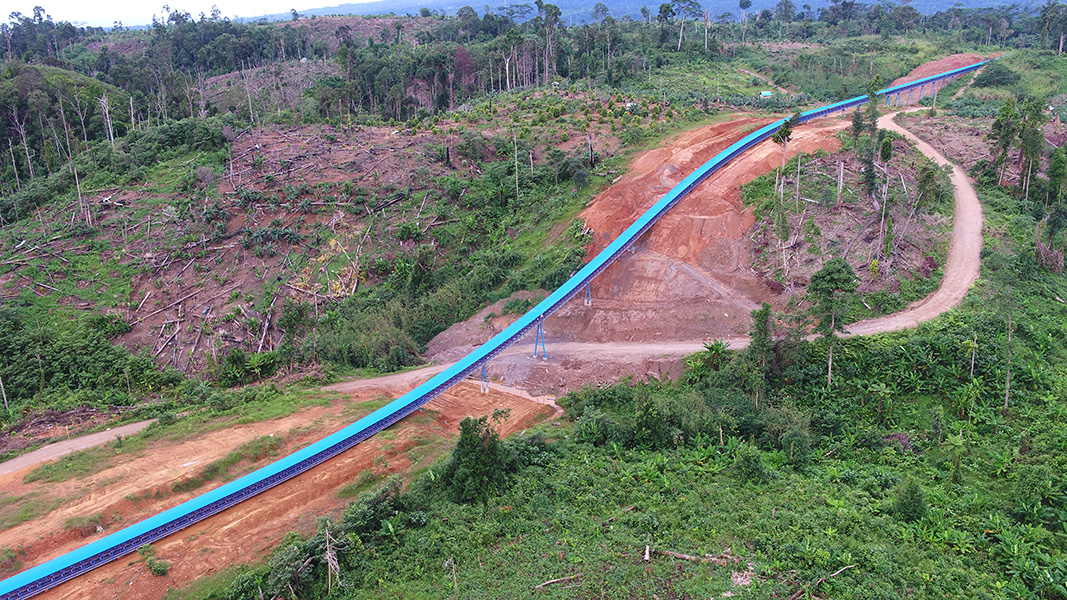

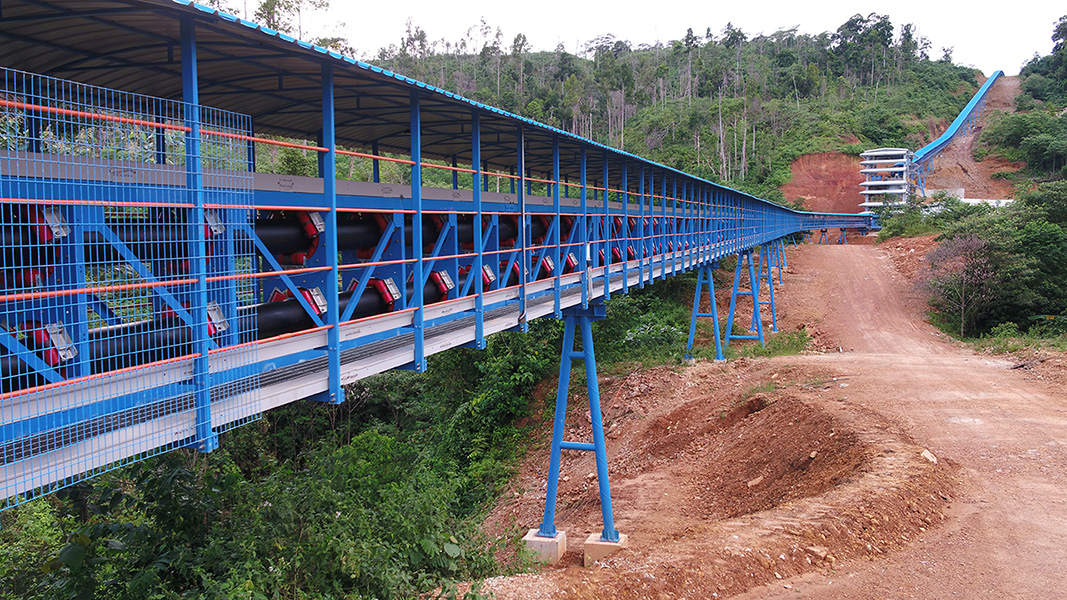

The conveying system of the Indonesian mine project consists of 2 super-long-distance pipe belt conveyors, 34 factory belt conveyors and one wharf belt conveyor.

NO. PC2  pipe belt conveyor, diameter φ =300 mm, length =8231.3 m ，Refreshed the world's longest record of a single belt with the single driving system.The total downward transportation height ：- 260.62m,  Total downward transportation length is - 367.145m, the maximum capacity is 950t/h, the belt speed is 3.15m/s, and the driving power is 4 * 500kw

This belt conveying project ranks first in the energy & mineral fields of Southeast Asia. This project  helps ZGCMC made its  mark in the belt conveying  field in china and the world.

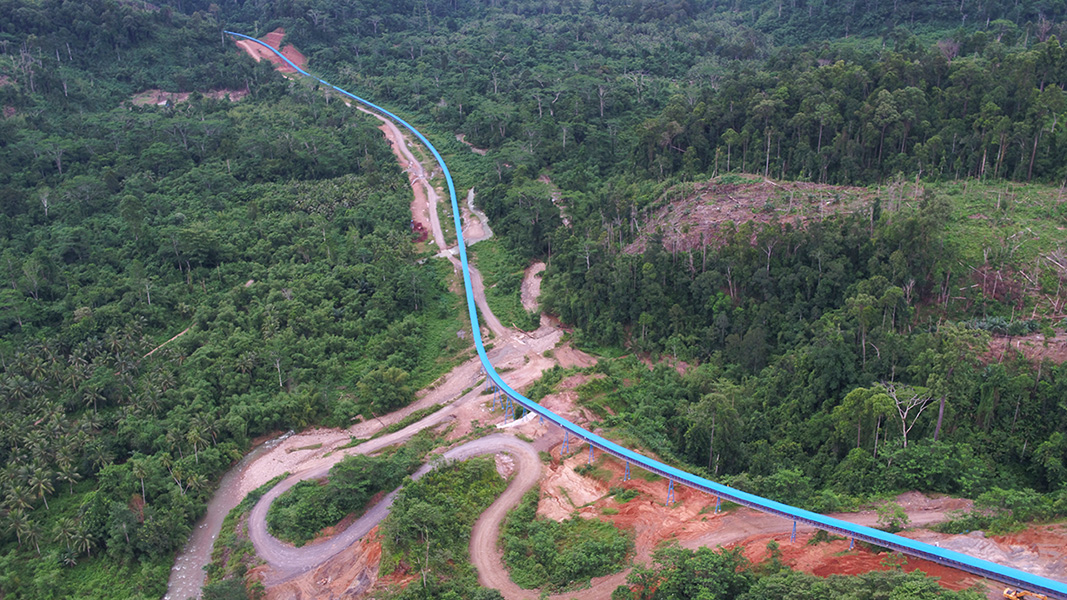

Main  tech spec: facade turning 26 pcs, horizontal turning 12 pcs,  all are 3D turning; single maximum horizontal turning angle 69.56°,  r=350m; total horizontal turning angle 327.21°; including a continuous S-shaped horizontal turning 36°+69.56°+42.66°, the minimum r=300m, and the straight line between adjacent horizontal turning is less than 9.5m;
